Realize impressive results with the Raise3D Pro2 Plus Dual Extruder 3D printer. Raise3D stands for the production of high quality, reliable and affordable production machines. This 3D printer allows you to produce small series and prototypes.
This new printer from Raise3D takes 3D printing to a new dimension! Print large and fast with superior quality.
Key product features:
* Precise control of the construction platform via touch screen
* Large printer chamber: 305 x 305 x 600 mm
* Integrated filament sensor and camera
* Innovative air supply for clean air

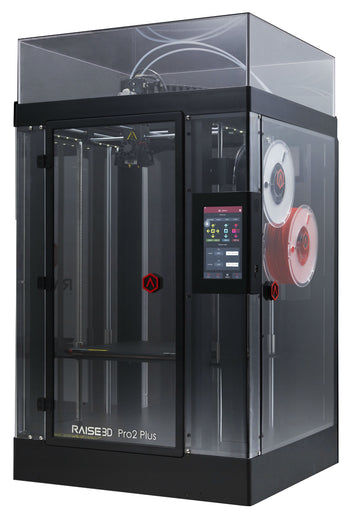

Raise3D Pro2 Plus
- High quality and reliable Dual Extruder 3D Printer
Raise3D stands for the production of high-quality, reliable and affordable 3D printers. Realize impressive results quickly with this Raise3D Pro2 Plus Dual Extruder 3D printer. In addition, you can use this 3D printer to produce small series and prototypes quickly and cheaply. In contrast to the Pro2, the Plus variant offers a higher building height by 30 cm in the Z direction - now 60.5 cm high.
The main new features of Raise3D Pro2 Plus:
*Precise electronic control of the construction platform
*FFF / FDM Dual Extruder 3D Printer
*Optimized extruder head with improved nozzle
*Integrated filament sensor recognizes filament status
*High temperature silicone build plate for good adhesion on build platform
*Aluminum magnetic building plate with improved 4 + 9 point closing system
*Environmentally friendly and safe thanks to air filter
Additional optimizations
*Improved factory calibration allows you to quickly start 3D printing
*Integrated camera allows you to monitor the printing from the remote control
*Optimized nozzle for optimal extrusion
*Upgraded Hot-end
*High quality optical end stops
*Programmable active fan for optimal cooling
*Large construction area: 305 x 305 x 605 mm
*Very extensive accessories
High quality 3D printing
Let Raise3D Pro2 Plus fascinate you. 3D printing is cumbersome, complicated and produces poor results? It was yesterday. Raise3D Pro2 Plus convinces the opposite with many intelligent functions. There are very few 3D printers on the market that can integrate all this functionality into one device. The majority of these devices cost a majority of Raise3D Pro2.
Intuitive 7-inch color touch screen
Control this dual extruder 3D printer through its 7-inch color display. Can you operate a smartphone? If so, you can use the intuitive interface of your Raise3D Plus. By using the simple buttons, you always have your 3D printer under control. Make your masterpieces come true with Raise 3D Pro2 Plus.
Heated build plate and closed cabinet
Thanks to its generous build volume, you are able to manufacture very large components and prototypes. 3D print parts that reach a length of 305 x 305 x 605 mm. In addition, the cabinet of this 3D printer is closed. This allows you to process more sophisticated materials such as ABS, HIPS, PET-G, PLA +, PP and ASA. This is also made possible with a heated build plate (up to 110°C) and the completely closed cabinet. Heat the extruder up to 300°C. Transform your creative ideas into new real objects.
Raise3D Pro2 Plus offers an open system and can work with a variety of materials from most third-party manufacturers. The filaments only require a diameter of 1.75 mm.
Improved twin extruder
*Precise control of the build plate
*Optimized extruder head with improved torque and double gear drive
*Optical Filament Sensor - This shows you the filament status and immediately stops the 3D printer when the filament is used up. After filling, you can continue to work.
Thanks to the double extruder, you can produce enmers from two different filaments, materials and support materials. If you use PVA or HIPS as the second filament, you can realize very complex components with overhangs. After finished 3D printing, you can simply dissolve the support filament and get good results.
New build plate for better adhesion
Now Raise3D Pro2 Plus works with a new silicone heated build plate. This increases the adhesion of your components to the build plate. The base of this forms a magnetic aluminum building plate. This is equipped with an improved 4 + 9 point locking system.
Air filter for improved air quality reduces smoke and odors
Clean air is important to us all. This is true even if we are talking about 3D printers. With Raise3D Pro2 Plus, the air in your environment remains clean and free of harmful substances. The integrated air filter cleans the exhaust air.
Resume function after power failure 3D printer
Power failure - And now? With this 3D printer you are not in trouble. Once the power has returned, simply resume your 3D print using the RESUME function. The built-in 1000 mA battery saves the 3D print process. The 3D printing can then be easily continued. This feature will save you filament, costs and time due to interruptions.
Fast and accurate production with Raise 3D Pro2 Plus
Raise3D Pro2 Plus allows you to print at high speed and produce at a very high level. In the Z direction, a very high resolution of up to 0.01 mm layer thickness can be achieved. Make fine structures and very smooth surfaces. When working with such a high resolution, we recommend that you only make small parts, as the build time increases greatly.
Construction an Technical Details | |
Usable Nozzle Type | Raise3D Pro2 Plus |
Unusable Filament Diameter | 1.75 mm |
Nozzle Temperature Max | 300 ºC |
Open Filament System | Yes |
Extruder Type | direct drive |
Printing Speed Max | 150 mm/s (depends on material)) |
Build Area | 305mm x 305mm x 605mm |
Dual Build Area | 303mm x 280mm x 605mm |
Build Plate Temp Max | 110 ºC |
Surface spelling dosky | BuildTak |
Build Plate Material | Aluminum plate |
Build Plate Attachment | magnetic / screws |
Build Plate Leveling System | Pre-calibrated - manual Leveling |
Build Chamber During Process | Open or Closed |
Filament Chamber Closed | Yes |
Extruder Number Of | 2 |
Extruder Construction Type Dual | Dual-head with electronic lifting system |
Installation Space / Requirements | |
Total Mass | 590mm x 620mm x 1105mm |
Total Weight | 59.3 kg |
Operating Ambient Temperature | 15°C - 30°C |
Max Power Consumption | 600W |
Voltage | AC: 100 V, 3.3 A / 230 V (50/60 Hz) |
Equipment | |
Hepa Filter | Yes |
Filament Runout Sensor | Yes |
Power Loss Fail Safe | Yes |
Touch screen | Yes |
Camera | Yes |
Memory Internal | Yes, 8 GB |
Connection | |
USB port | Yes |
Ethernet port | Yes |
Wi-Fi | Yes |
Cloud Control | Yes |
Accuracy | |
Layer Height | 0.01 - mm |
Shipping | |
Shipping Box | 690 mm x 730 mm x mm |
Shipping Weight | 79.6 kg |
What comes with it?..
1x Raise3D Pro2 Plus 3D printer with dual extruder
2x spools of PLA filament (1.00 kg each)
2x metal rods for cleaning the hot end
1x tweezers
1x set of umbraco keys
1x putty
Various fuses
1x power cable
instructions
Introduction to the Raise3D Pro2 Series:
Tekniske specifikationer
Anvendelig filamentdiameter
1.75 mm
Maksimal dysetemperatur
300 ºC
Åbent filamentsystem
Ja
Ekstrudertype
Direct Drive
Anbefalet maksimal printhastighed
150 mm/s
Størrelse byggeområde
305x305x605 mm
Maksimal temperatur for byggeplade
110 ºC
Overflade på medfølgende byggeplade
Aluminum Plate
Automatisk nivillering af byggeplade?
Nej
Åbent eller lukket kabinet
Lukket
Antal Ekstrudere
2
Brand
Raise3D
Vægt
78.0 kg
EAN
6970240721307
Installationsplads og krav
Mål på maskinen
590x620x1105 mm
Samlede Dimensioner
590x620x1105 mm
Samlet Vægt
59.3 kg
Maksimalt Strømforbrug
600 W
Spænding
100-230 V, 50/60 Hz
Omgivende Driftstemperatur
15-30 ºC
Udstyr
HEPA-filter
Ja
Sikkerhed ved strømsvigt
Ja
Sensor for udløb af filament?
Ja
Forbindelse
USB-port
Ja
WLAN (Trådløst Netværk)
Ja
Ethernet-port
Ja
Cloud-styring
Ja
Forsendelse - kg
Forsendelsesvægt
79.6 kg
