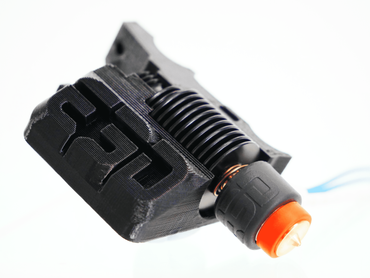

E3D Revo™ - Fully Loaded Kit - 1,75 mm - 24V - Prusa Mini Edition

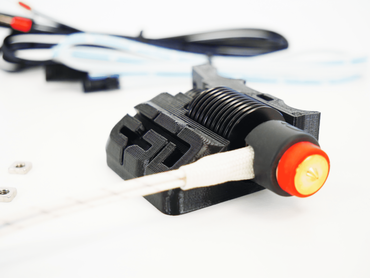

Revo™ Prusa Mini Edition is a drop-in replacement for your Prusa Mini & Mini+ and gives you all the benefits of E3D's RapidChange Revo ecosystem in an easy-to-upgrade package. The Revo™ Prusa Mini Edition includes a Prusa-specific thermistor extension cable, a heater extension cable, a 3D printed bracket and everything else you need for a true drop-in replacement experience.

This is a fully equipped nozzle set with 1 x 0.25, 0.40, 0.60 and 0.80mm brass Revo™ nozzles

With Revo™ Prusa Mini Edition you get:

No conversion of the machine

The Revo™ Prusa Mini is a great choice if you want to update your old Prusa Mini or Mini+ setup to the latest generation of E3D™ HotEnd technology. It has the same nozzle position and filament diameter. All you have to do is loosen the two screws holding the existing HotEnd and reattach the new bracket.

Ready for Revo™

The Revo™ Prusa Mini is designed to work with Revo™ nozzles, meaning you can do nozzle changes with your fingers at room temperature without complex tools or hot clamping. Each Revo™ nozzle is factory sealed, making it much simpler and more reliable than most HotEnd technologies available today.

Improved performance

The Revo™ Prusa Mini uses a Revo HeaterCore, our latest HotEnd heating and sensor architecture. It reaches temperature much faster than a traditional aluminum heating block and is much safer: a positive temperature coefficient (PTC) means that HeaterCore cannot melt at extreme temperatures, reducing the risk in the event of thermal runaway.

No firmware or PID changes

The Revo™ Prusa Mini is designed to be fully compatible with the Prusa Mini firmware - this means there is no need to change the firmware. Even more impressive is that it is fully compatible with the Prusa Mini temperature monitoring model, meaning you don't need to PID tune after the upgrade!

Please note:

• You may need to adjust your Z offset when changing nozzles.
• This kit does not include a fan. Prusa's standard fan must be recycled.
• This kit does not contain any PTFE tubing. If you need extra PTFE, it can be purchased here

The set contains:

• 1 x Revo™ Micro kølehoved
• 1 x collet
• 1 x Buckle clip
• 1 x Revo™ HeaterCore 24V
• 1 x Revo™ HeaterCore springs
• 1 x Prusa Mini extension cable set
• 1 x Prusa Mini hanger
• 3 x cable ties
• 2 x M3 square nut

Fully equipped nozzle set:

• 1 x 0.25, 0.40, 0.60 and 0.80 mm brass Revo™ nozzles

See also our single nozzle set.
