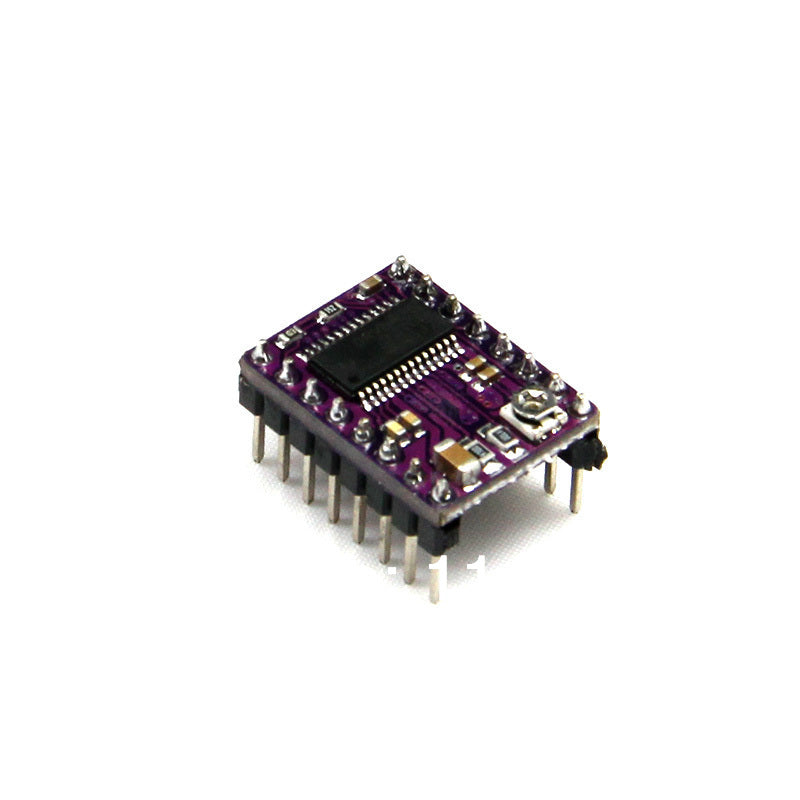

DRV8825 motor driver

DRV8825 stepper driver Max current 2.5A

The DRV8825 provides an integrated motor driver 1• PWM Microstepping Stepper Motor Driver solution for printers, scanners, and other automated – Built-In Microstepping Indexer equipment applications. The device has two H-bridge – Up to 1/32 Microstepping drivers and a microstepping indexer, and is intended to drive a bipolar stepper motor. The output driver • Multiple Decay Modes block consists of N-channel power MOSFET's – Mixed Decay configured as full H-bridges to drive the motor – Slow Decay windings. The DRV8825 is capable of driving up to – Fast Decay 2.5 A of current from each output (with proper heat sinking, at 24 V and 25°C). • 8.2-V to 45-V Operating Supply Voltage Range • 2.5-A Maximum Drive Current at 24 V and A simple STEP/DIR interface allows easy interfacing T to controller circuits. Mode pins allow for configuration A = 25°C of the motor in full-step up to 1/32-step modes. Decay • Simple STEP/DIR Interface mode is configurable so that slow decay, fast decay, • Low Current Sleep Mode or mixed decay can be used. A low-power sleep • Built-In 3.3-V Reference Output mode is provided which shuts down internal circuitry to achieve very low quiescent current draw. This • Small Package and Footprint sleep mode can be set using a dedicated nSLEEP • Protection Features pin. – Overcurrent Protection (OCP) Internal shutdown functions are provided for – Thermal Shutdown (TSD) overcurrent, short circuit, under voltage lockout and – VM Undervoltage Lockout (UVLO) over temperature. Fault conditions are indicated via the nFAULT pin. – Fault Condition Indication Pin (nFAULT)
