Bondtech LGX™ Large Gear Extruder
Gratis fragt over 399 kr
Nem og billig retur
Kundeservice alle hverdage
Bondtech LGX™ Extruder
The Bondtech LGX™ Large Gears eXtruder is the first of our filament extruders to use Bondtech's new Dual Drive Technology, which is based on larger drive gears.
Bondtech LGX™ Extruder
The Bondtech LGX™ Large Gears eXtruder is the first of our filament extruders to use Bondtech's new Dual Drive Technology, which is based on larger drive gears.
LGX™ extruder
- e-steps value : 400 on 16 bit micro-stepping setups; 800 on 32 bit micro-stepping setups.
- Drive wheels: hardened steel;
- Materials compatibility: abrasive; rigid; semi-flexible; flexible; and soft.
- Mounting holes: M3
- Mounting patterns: bottom anterior (2 points); left (2 points), right (2 points), front (4 points), back (4 points)
- Holes on the sides of the LGX™: 5 mm depth
- Holes on the bottom of the LGX™: 12 mm depth
- retraction speed: 35 mm/s
- retraction distance (bowden) : ~5 mm (0.4 + tube length x 0.15)
- retraction distance (direct drive) for rigid materials: 0.4 mm
- retraction distance (direct drive) for soft materials: 3 mm
- Maximum operating temperature: 80°C

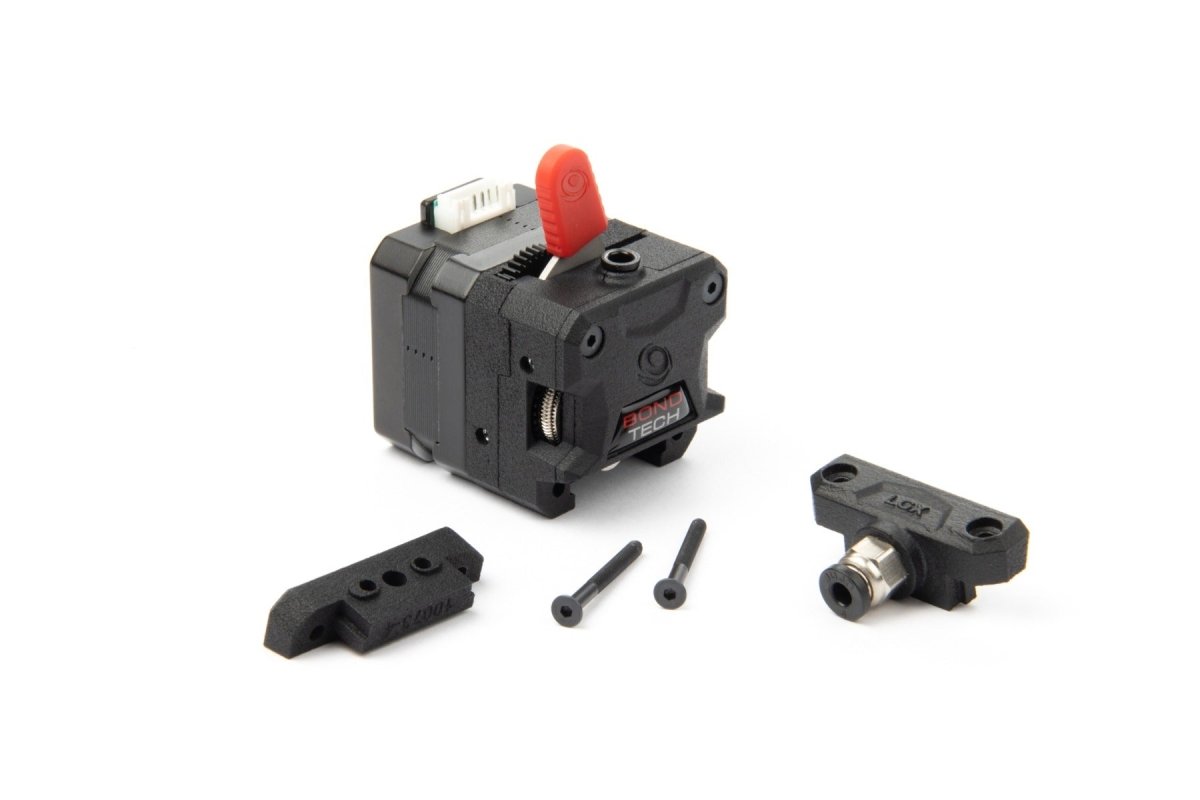

What's in the box?:
- 1x LGX™ feeder
- 1x Custom LDO Nema17 25mm pancake stepper motor
- 1x Bowden Interface Plug (with threaded metal push-fit)
- 1x Direct Drive Interface Plug (for Slice Engineering hotends)
- 1x 2mm Hex Key (recommended tool)
- 1x Product Line Information Brochure
- 1x Powered By Bondtech sticker
Technical specifications
LGX™ extruder
- e-steps value : 400 on 16 bit micro-stepping setups; 800 on 32 bit micro-stepping setups.
- Drive wheels: hardened steel;
- Materials compatibility: abrasive; rigid; semi-flexible; flexible; and soft.
- Mounting holes: M3
- Mounting patterns: bottom anterior (2 points); left (2 points), right (2 points), front (4 points), back (4 points)
- Holes on the sides of the LGX™: 5 mm depth
- Holes on the bottom of the LGX™: 12 mm depth
- retraction speed: 35 mm/s
- retraction distance (bowden) : ~5 mm (0.4 + tube length x 0.15)
- retraction distance (direct drive) for rigid materials: 0.4 mm
- retraction distance (direct drive) for soft materials: 3 mm
- Maximum operating temperature: 80°C
- LGX™ DD net weight: 218.6 g
- LGX™ B net weight: 224 g
- Package measurements: 80x103x73 mm
- Package weight: 269 g
- Download the LGX Technical Drawings here .
Tekniske specifikationer
Brand
Bondtech
Vægt
0.5 kg
EAN
7350011413607
