BigTreeTech - Stepper Motor Driver - TMC2225
På lager
Leveringstid: 1-2 hverdage
Gratis fragt over 399 kr
Nem og billig retur
Kundeservice alle hverdage

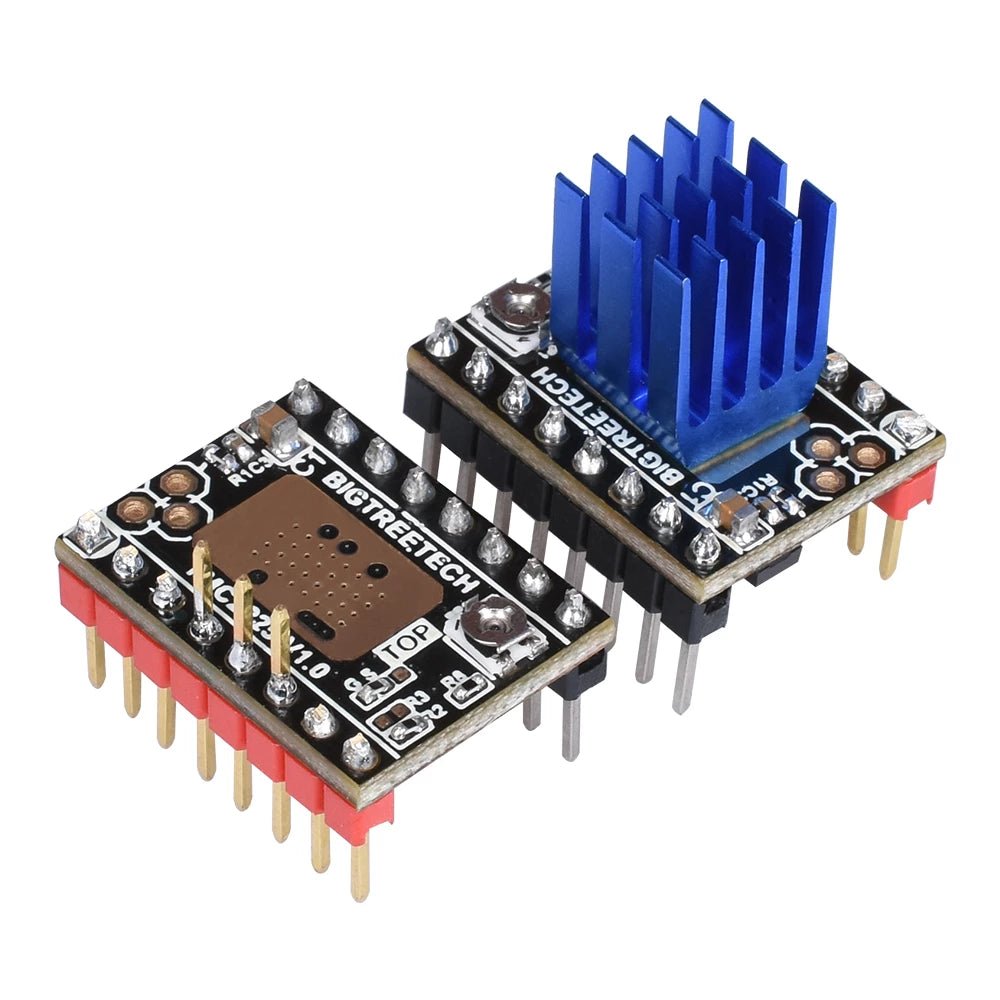

BigTreeTech BIQU Stepper Motor Driver TMC2225-V1.0
The TMC2225 are ultra-low noise motor driver ICs for two-phase stepper motors. Their pinning is compatible with a number of older drivers. TRINAMIC's StealthChop2 ensures noise-free operation, maximum efficiency and the best motor torque.
The fast current regulation and optional combination with SpreadCycle allows for very dynamic movement.
Integrated power MOSFETs handle motor current up to 1.4A RMS. Protection and diagnostic functions support robust and reliable operation.
A user-friendly UART interface opens up more setting and control options. Application-specific tuning can be stored in the OTP memory.
The industry's most advanced STEP/DIR stepper motor driver series upgrades design for noise-free and precise operation for cost-competitive solutions.
Features and benefits:
2-phase stepper motors up to 2A coil current (peak) STEP/DIR Interface with 4, 8, 16 or 32 micro-step pin settings.
Smooth running 256 microsteps with MicroPlyer™ interpolation StealthChop2 silent motor control SpreadCycle highly dynamic motor control
Low RDSon LS 280mΩ & HS 290mΩ (typ. at 25°C)
Voltage range 4.7~ 36V DC Automatic standby current reduction (optional)
Internal sensor resistor option (no sensor resistors required)
Passive braking and coasting single wire UART & OTP for advanced configuration options
Integrated pulse generator for independent movement Full protection and diagnostics HTSSOP package for the best thermal resistance.
Tekniske specifikationer
Brand
BIGTREETECH
Vægt
0.05 kg
