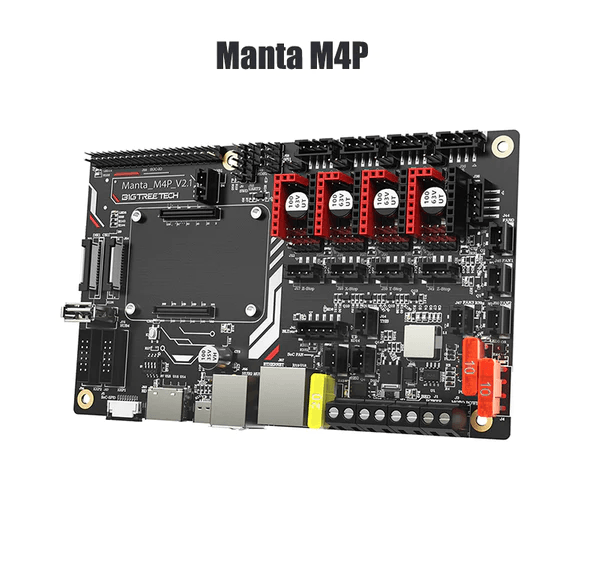

BigTreeTech - Manta M4P

The Manta M4P from BIGTREETECH is a versatile 32-bit motherboard that has many features and offers a number of upgrade options thanks to the many interface options. The motherboard is compatible with Marlin open source software and with Klipper firmware when combined with CB1. Manta M4P is best suited for Voron V0 and Ender 3.

Specifications:

• 32-bit ARM® Cortex-M0+ STM32G0B0RE, 64MHz - faster and more stable
• BTB connection for all CM4 versions
• 5A for Raspberry Pi - TPS5450-5A power supply chip
• 3 different voltages for fan plug (5V, 12V and 24V)

Card-to-card connector

The Manta M4P is equipped with the same connector as the Raspberry Pi. Therefore, the motherboard can be connected to all versions of the Raspberry Pi CM4 and CB1. The mounting of the CB1 or CM4 plate can be further reinforced with screws.

Integrated HDMI connection

An HDMI connection allows the transfer of audio and video directly to an HDMI display!

Mechanical outlet detection sensor port

The motherboard is equipped with a connector for detecting filament discharge. When the filament is used up, the mechanical sensor informs the motherboard and the print is automatically stopped. After the filament is replaced, printing can continue.

BLTouch automatic leveling sensor port

Automatic slab leveling is guaranteed with BLTouch!

Automatic power off mode

Powerful and energy-saving! When printing is complete, the printer turns itself off.

Connect to an RGB light bar

The motherboard allows you to connect an RGB light bar. This allows you to admire your printing processes in colored light!

SPI touch screen

The BIGTREETECH SPI touch screen can be connected to the motherboard!

DSI display port

With a CSI camera you can capture your 3D prints on video!

Compatible step driver interfaces: SPI, UART, STEP/DIR

Technical specifications:
