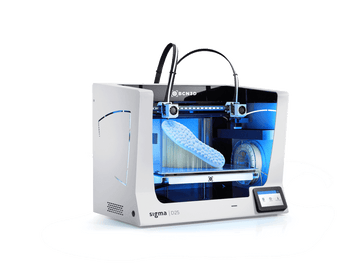

BCN3D Sigma D25
Discover a new generation of BCN3D's best-known 3D printers, designed to provide maximum productivity, with features such as its large print volume and many options. Powered by the Independent Dual Extruder (IDEX) system, the Sigma D25 quickly delivers functional prototypes in high quality and precision.
The main product features:
*Heat the build plate to 120°C to print with technical grade materials and avoid warping issues.
*E3D™ Hotends are carefully designed to deliver the smoothest and most reliable extrusion.
*The BCN3D Epsilon series is equipped with a multilingual touchscreen that guides you through its technical functions.
*Robust aluminum frame for guaranteed strength and durability.
*Bondtech™ extruders feature high-tech gear drives that provide more control, sharper detail and superior performance for any type of filament wire.
*Filament Runout Sensor that detects when the filament is finished and pauses the print until it is reloaded again.
Create large functional parts with solid mechanical properties.
Open up a wide range of technical applications with the industrial BCN3D filaments,
developed by the famous chemical companies: BASF and Mitsubishi Chemical, or work
confidently with any third-party material of your choice thanks to our Open Filament System.
Mirror mode
A mode that enables printing of the mirrored design symmetrically and speeds up iteration.
Copy mode
An option that prints identical models simultaneously and doubles production capacity.
Dissolvable supports mode
A process that prints dissolvable parts to create intricate structures and avoid geometric ones
limitations.
Multi-material mode
A technique that makes it possible to print two different materials and then combine them
Construction and Technical Details | |
Unusable Filament Diameter | 2.85 mm |
Nozzle Temperature Max | 300 °C |
Open Filament System | Yes |
Extruder Type | bowden Bondtech dual drive gears |
Build Area | 300mm x 420mm x 200mm |
Dual Build Area | 300mm x 420mm x 200mm |
Heated Build Plate | Yes |
Build Plate Temperature Max | 80 ºC |
Build Plate Attachment | clamp |
Build Chamber During Process | Open |
Extruder Number | 2 |
Extruder Construction Type Dual | IDEX - Independent Dual Extruders |
Installation Space / Requirements | |
Total Mass | 530mm x 690mm x 550mm |
Total Weight | 30 kg |
Operating Ambient Temperature | 15°C - 30°C |
Power Consumption Max | 650 W |
Voltage | 1 AC: 84 V - 240 V (50-60 Hz) |
Equipment | |
Filament Runout Sensor | Yes |
TouchScreen | Yes |
Connection | |
Memory Card | Yes |
Ethernet Port | Yes |
Wi-Fi | Yes |
Cloud Control | Yes |
Accuracy | |
Layer Height | 0.05mm - 0.5mm |
Shipping | |
Shipping Box | 570mm x 780mm x 725mm |
Shipping Weight | 43 kg |
BCN3D Sigma D25
The BCN3D Sigma D25 is a desktop 3D printer with Independent Dual Extruder System (IDEX). It is durable, solid and easy to use. Use it to additively manufacture precise and detailed parts from multiple materials and colors.
*Print volume: 420mm x 300mm x 200mm
*High performance extruder from Bondtech
*IDEX system for independent dual extruder 3D printing
Tekniske specifikationer
Ekstrudertype
Bowden Setup
Størrelse byggeområde
300x420x200mm
Brand
BCN3D
Vægt
43.0 kg
EAN
8436586131012
