Bondtech LGX® Lite Arrow - Ex CR-6 SE-MAX - CR-10 Smart

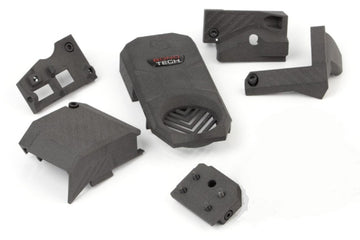

The LGX Lite Arrow is an upgrade kit that goes together with the LGX Lite extruder.

It consists of 2 parts:

* An adapter to mount the LGX Lite on top of the hotend attached to the strain gauge

* A multi-part housing to put over, hold the cooling fan and cover cables and/or break-out board

Features:

* Fits LGX Extruder ONLY - Extruder not included

* It converts the compatible printers from Bowden to direct extruder

* Compatible with all standard hotends and cooling fans

* Extra load on gauge strain is limited to LGX Lite only

* Isolated from extruder, to allow strain gauge leveling

* Easy to remove for maintenance and service of hotend and extruder

* The Z position of the fan shroud is adjustable

* The parts are made of gray polyamide -PA12- without color with a wax-protective coating

Fits to:

* Cr-6 SEE

* CR-6 MAX

* CR-10 Smart

! ATTENTION ! Extruder is not included

Upgradable with Slice Engineering hotends:

• * Copperhead Screw Mount
• * Mosquito
• * Mosquito Magnum
• * Mosquito Magnum + Air

What comes with it?

1x LGX Lite Strain Gauge mounting set

1x LGX Lite Arrow housing set

1x LGX Lite Arrow Hardware mounting set with:

4x M3x6 button head screws

4x M3x8 button head screws

2x M3x10 button head screws

1x M3x16 screw

2x M3x20 MC6S screws

1x M3x25 screw

4x M3 square nut

1x Capricorn cutting fixture

1x 70mm Capricorn tube

Extruder is not included, but can be purchased separately here .
